200-Liter Belt-Drive Oil Air Compressor, 10 Bar, 5.5 HP Electric Motor

Brief Overview

This 200-liter belt-drive air compressor delivers consistent, oil-lubricated air supply for demanding industrial and workshop applications. Built on proven slow-running, two-piston design principles, it offers the reliability and service life that professional shops require for daily operation. For operations requiring higher output capacity, consider pairing this unit with our larger capacity industrial compressors, or explore our more compact alternatives for space-constrained environments.

Key Features

• 200-liter steel tank with anti-corrosion powder coating for extended outdoor durability
• Aluminum pistons and cast-iron cylinders for superior heat dissipation and reduced wear
• 10 bar maximum pressure with precise manometer for inlet pressure monitoring
• Finned aftercooler design ensures rapid heat dissipation during continuous operation

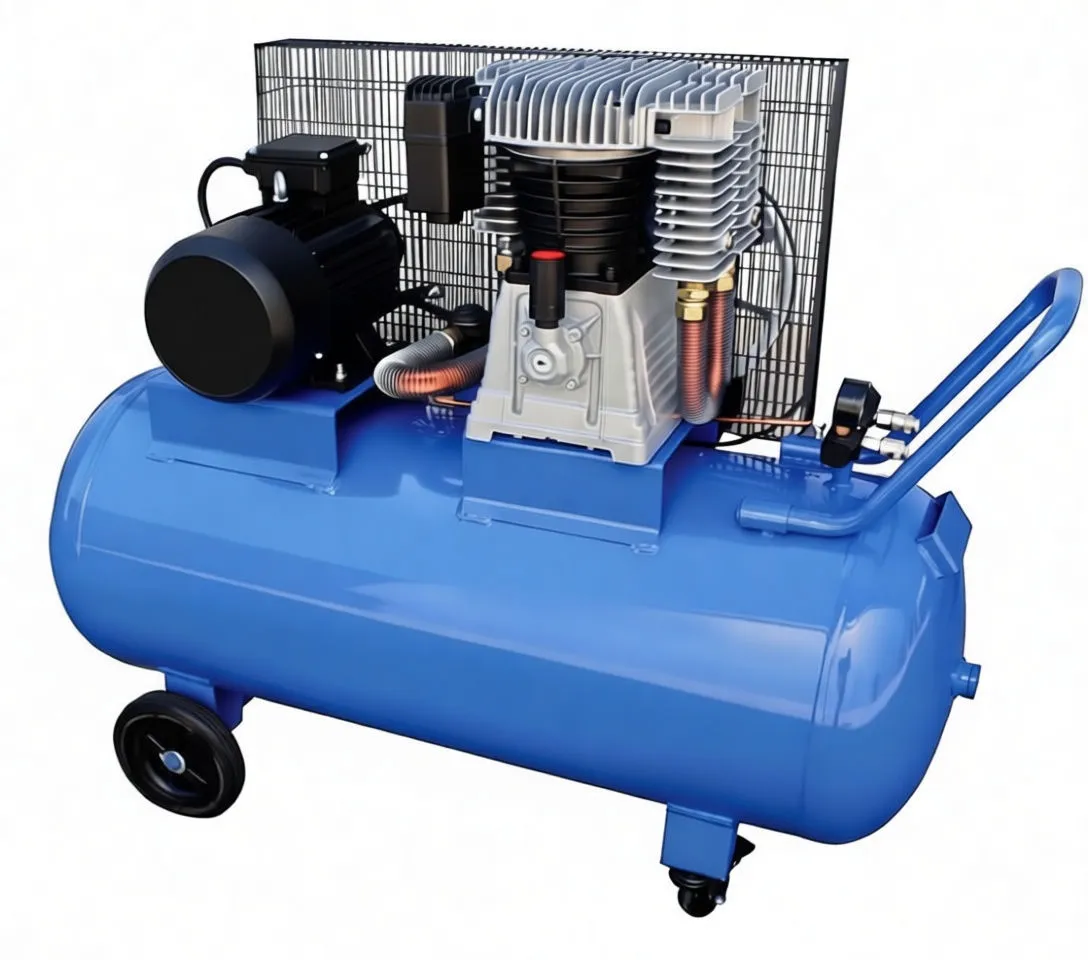

• 5.5 HP electric motor with belt-drive transmission for efficient, low-speed pump operation
• Safety-first construction: Steel covers protect all moving parts; flywheel acts as integrated cooling fan
• Mobility: Four-wheel configuration (2 fixed + 2 swivel casters) for straightforward jobsite relocation

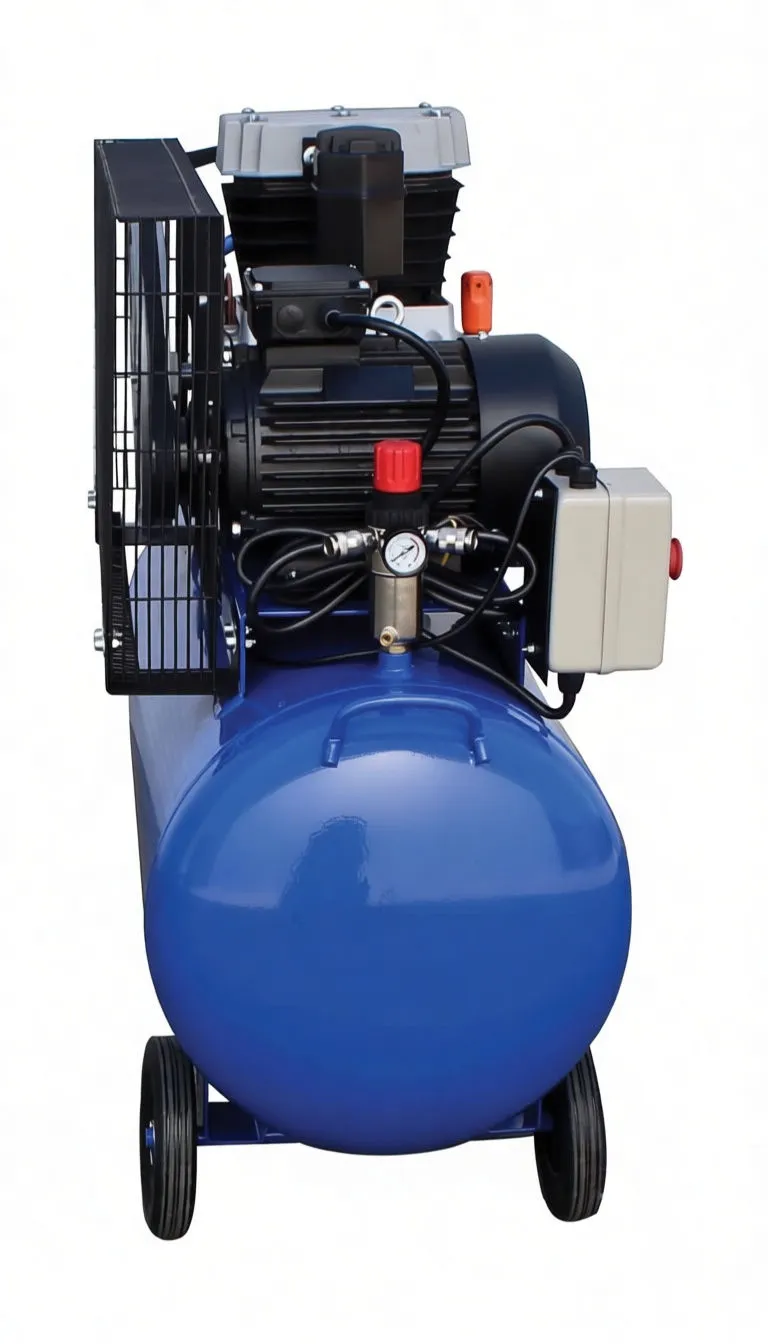

• Integrated controls: Oil level sight glass, pressure reducer with quick connector, and emergency-rated electrical control box

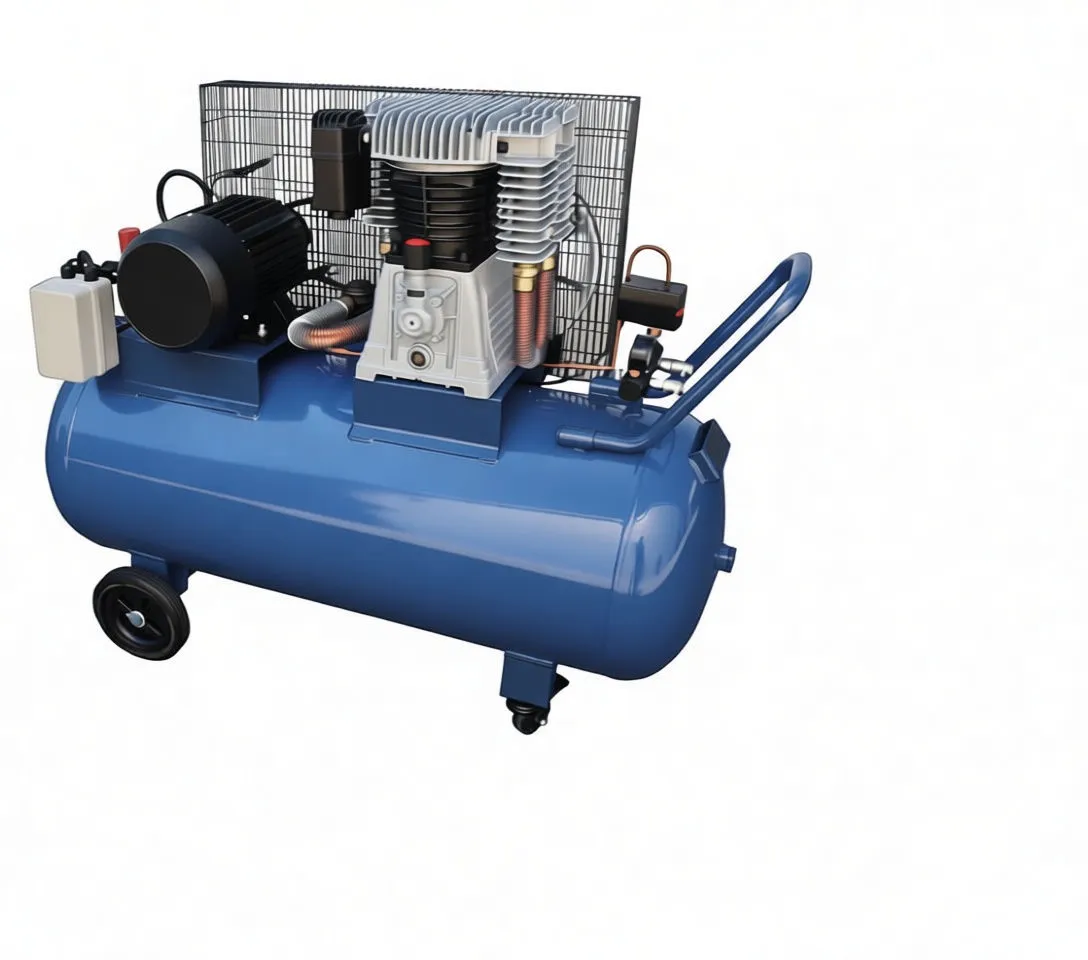

• Brass ball valve drain for straightforward tank maintenance and water removal

Business Advantages for Resellers

High-Volume Demand Appeal: This 200L capacity strikes the optimal balance between affordability and output for small-to-medium workshops, making it a consistent volume seller in your customer base. The proven belt-drive, oil-lubricated design minimizes technical support calls and warranty claims.

Service & Parts Revenue: Oil-lubricated compressors generate reliable aftermarket demand for oil, filters, and wear components—creating predictable recurring revenue opportunities with your customer base.

Competitive Margin Profile: Belt-drive units offer superior margins compared to direct-drive alternatives while maintaining perceived value in the mid-market segment.

Durability Reputation: Cast-iron/aluminum construction and slow-running design translate to industry-standard 10,000+ hour service life, building customer confidence and repeat business.

Technical Specifications

Specification	Value
Tank Capacity	200 liters
Maximum Pressure	10 bar
Motor Power	5.5 HP electric
Drive Type	Belt-driven
Piston Configuration	Two-piston oil-lubricated
Cylinder Material	Cast iron
Piston Material	Aluminum
Cooling System	Finned aftercooler with integrated flywheel fan
Tank Construction	Thick steel sheet with anti-corrosion powder coating
Mobility	4-wheel base (2 fixed + 2 swivel)
Safety Features	Steel guard covers, emergency stop button, pressure gauge
Oil Level Indicator	Sight glass
Drain System	Brass ball valve with lever control
Pressure Control	Reducer with universal quick connector

Why This Unit Outperforms Alternatives

Slow-Running Design: Unlike high-speed direct-drive units, the belt-driven transmission keeps piston speeds low, reducing mechanical stress and extending component life significantly.

Thermal Management: The combination of aluminum pistons (faster heat transfer), cast-iron cylinders (heat retention without distortion), and large-surface aftercooler prevents thermal runaway during extended duty cycles.

Rigid Steel Tank: Thick-wall construction with powder-coated finish resists rust and chemical degradation far better than painted alternatives, especially in humid or corrosive environments.

Accessibility for Service: The oil sight glass and brass drain valve streamline routine maintenance—reducing downtime and service costs for your customers.

Application Profile

Ideal for:

• Metal fabrication and welding shops (steady air demand)
• Automotive service facilities (mixed-duty pneumatic tools)
• General industrial assembly and finishing
• Jobsite-portable compressed air supply (within power infrastructure limits)

Air Tool Compatibility: Supports continuous-duty pneumatic tools up to 10 bar: impact wrenches, air drills, pneumatic nail guns, paint spray equipment, and industrial dust collection systems.

Closing Value Statement

This 200-liter compressor represents a proven workhorse platform for shops seeking reliable, low-maintenance compressed air generation. The belt-drive architecture and oil-lubricated design ensure exceptional longevity and minimal technical support burden—critical factors in building customer loyalty and reducing warranty exposure. Stock this unit confidently as a cornerstone product in your industrial pneumatics line.
