50L Direct-Driven Oil-Free Dual Pump Air Compressor

Brief Overview

This 50-liter oil-free air compressor combines two independent pump heads in a direct-drive configuration, delivering consistent 424 L/min output at 10 bar working pressure. Built for pneumatic tool operations in automotive shops, tool rental centers, and mobile service units, this unit eliminates oil contamination in compressed air—critical for spray painting, air tools, and food/beverage applications. If you're looking to scale capacity, complementary options include a larger 100-liter capacity model or a compact 6-liter portable unit for satellite locations.

Key Features

• Dual Oil-Free Pump Heads: Two independent ø63.7mm cylinders eliminate cross-contamination and provide redundancy
• Direct-Driven Design: Mounted directly on motor shaft—no belt slippage, maximum efficiency transfer
• 10 Bar Maximum Pressure: Suitable for standard pneumatic tools, nail guns, impact wrenches, and spray equipment
• Dual Pressure Gauges & Regulator: Visible monitoring and precise pressure control for operator confidence

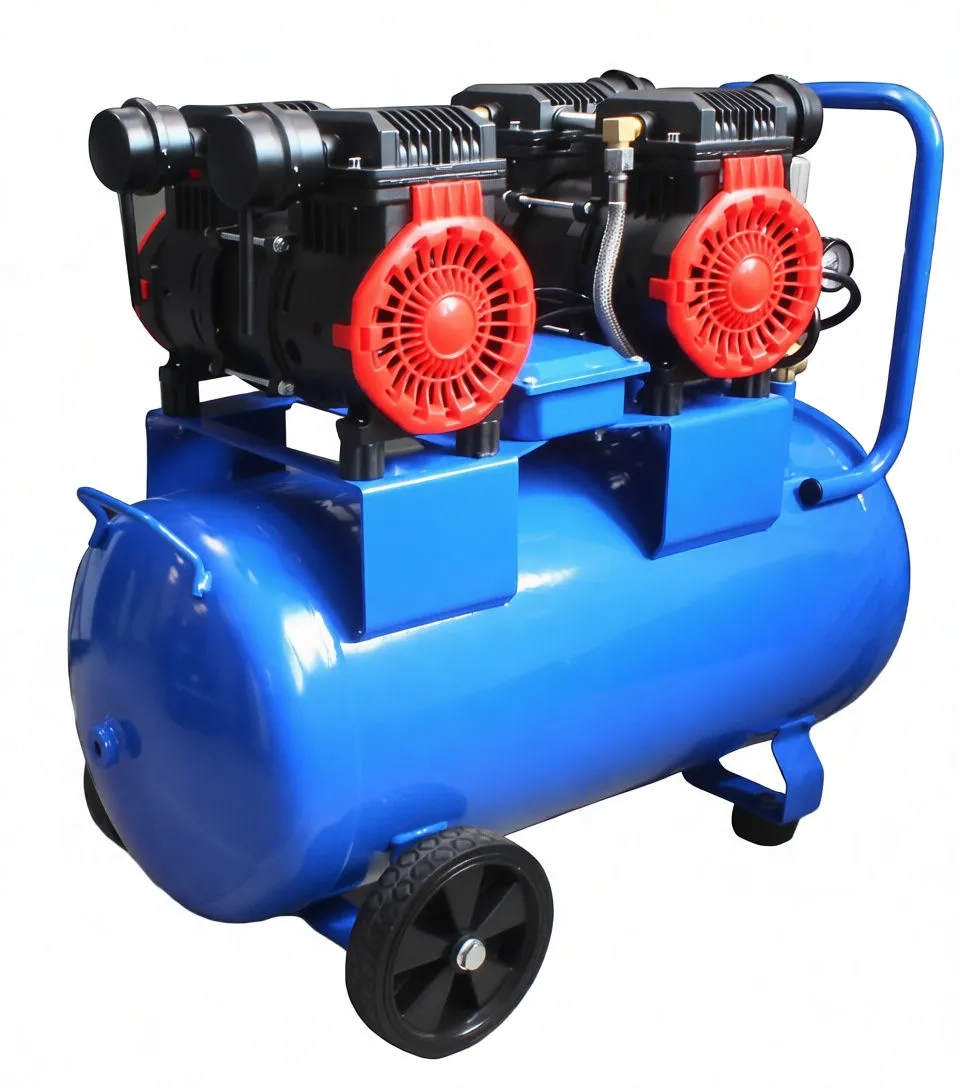

• Portable Configuration: 50L horizontal tank with integrated handle and transport wheel; weighs 39.0 kg for single-technician handling
• Low Noise Operation: 83 dB at full load—acceptable for indoor shop environments
• Oil-Free Air Delivery: No lubrication carryover; meets clean-air requirements for sensitive applications
• Single-Phase 230V Input: Standard European mains power; 9.8A current draw for typical workshop circuits

Business Advantages for Resellers

• High-Volume Shop Compatibility: 424 L/min sustained output supports 3–4 concurrent pneumatic tools without pressure drop
• Maintenance Cost Reduction: Oil-free operation eliminates filter cartridge replacement cycles and disposal costs
• Recurring Revenue: Pressure gauge servicing, gasket seals, and drain valve maintenance create planned service intervals
• Compact Footprint: Horizontal 50L tank saves floor space compared to vertical competitors—easier placement in cramped shop bays
• Dual-Pump Reliability: If one pump develops minor wear, the second continues operation, reducing downtime risk
• Cross-Sell Opportunities: Entry-level compressor that leads to upgrades to 100L models or industrial oil-lubricated units for high-demand shops
• Portable Asset Appeal: Rental shops and mobile mechanics appreciate the integrated handle and wheel—increases rental frequency

Technical Specifications

Specification	Value
Model	S-VENOM50/2
Air Receiver Volume	50 L
Maximum Working Pressure	10 Bar
Maximum Air Output	424 L/min (25.4 m³/h)
Motor Power	2.2 kW / 3 HP
Voltage	230V, single-phase
Current Rating	9.8 A
Motor Speed	2850 rpm
Frequency	50 Hz
Cylinder Bore	ø63.7 mm × 2
Noise Level	83 dB (full load)
Weight	39.0 kg
Dimensions (L × W × H)	720 × 300 × 620 mm
Tank Configuration	Horizontal, direct-drive pump mounted
Drainage	Manual drain valve, accessible underside
Pressure Control	Dual gauges + regulator assembly

Why Resellers Choose This Model

The dual-pump design appeals to cost-conscious shop owners who need reliable pneumatic power without the complexity of oil maintenance. The 424 L/min output is the practical sweet spot—enough to run two impact wrenches or a spray gun plus orbital sander simultaneously, but compact enough for shops without dedicated compressor rooms. Oil-free operation eliminates the consumable filter cartridge upsell but creates loyalty through pressure valve servicing and gasket replacement cycles.

The 50L tank volume provides sufficient pressure stability for intermittent tool use; continuous high-demand operations may require upgrading to the 100L direct-driven model.

---

Ready to stock this compressor? Order in bulk for immediate margin on unit sales, plus ongoing service revenue from maintenance intervals.
