Direct-Driven Air Compressor, 24L Tank

Brief Overview

This 24-liter direct-driven oil-lubricated air compressor is engineered for workshop operators and field technicians who require reliable compressed air in a portable, space-efficient package. Delivering 190 L/min at 8 Bar, it bridges portable convenience with practical output—suitable for pneumatic tools, inflation, spraying, and general industrial applications. For higher-volume operations, consider upgrading to larger belt-drive models with 480+ L/min capacity or exploring 50-liter compact alternatives if portability is the priority.

Key Features

• Low-Speed Single-Piston Design: Oil-cooled piston mechanism ensures extended component life and consistent thermal management
• Aluminum Piston & Cast Iron Cylinder: Premium material combination reduces wear while optimizing heat dissipation
• 24-Liter Steel Tank: Heavy-gauge construction with protective anti-corrosion powder coating for durability in demanding environments
• Direct Motor Coupling: 1.1 kW / 1.5 HP electric motor at 2,850 rpm—no belt maintenance required

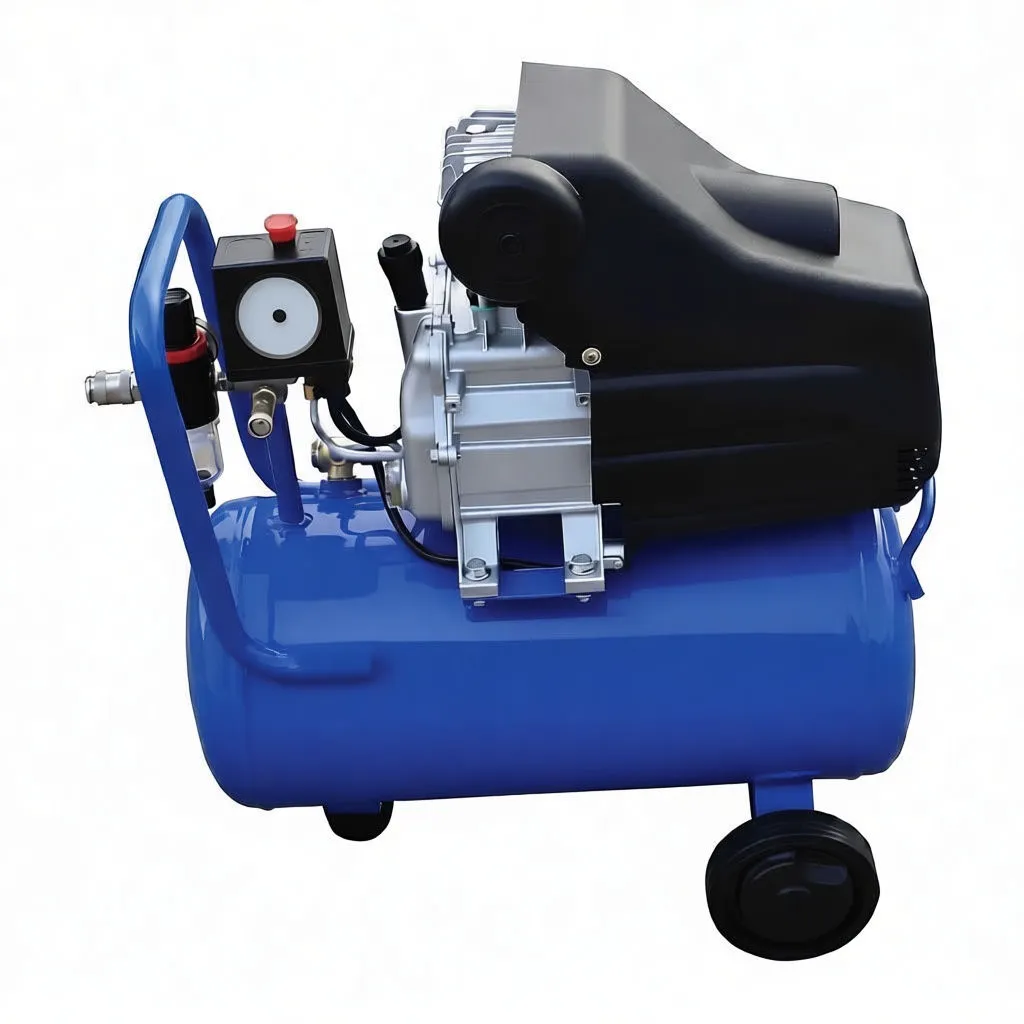

• Dual-Gauge Pressure System: Pressure reducer and working gauge display tank status; separate pressure switch for automatic operation
• Integrated Safety Architecture: Pressure relief valve, thermal motor protection, and emergency stop switch
• Portable Configuration: Compact footprint (60 × 26 × 62 cm), wheeled base design, and top-mounted handle enable quick repositioning
• Low Noise Operation: 78 dB output minimizes workplace fatigue

Business Advantages for Resellers

Margin-Friendly Positioning: This compressor occupies a profitable sweet spot between entry-level portables and heavy-duty industrial units. Customers hesitant to invest in larger 100+ liter models often default to this size—creating a reliable SKU with consistent turnover.

Service & Support Appeal: Direct-driven units require minimal maintenance (no belt tensioning), reducing support calls and improving customer satisfaction. Oil-lubricated construction extends component life, generating repeat business as operators service and eventually upgrade.

Multi-Channel Sales Opportunity: Automotive repair shops, agriculture operations, industrial maintenance teams, and rental facilities all stock this capacity—broadening your addressable market and reducing inventory risk.

Accessible Price Point: At 1.1 kW with proven specifications, this compressor delivers professional reliability without premium pricing, making it attractive to budget-conscious buyers upgrading from smaller pneumatic tools.

Technical Specifications

Parameter	Value
Model	S-90180
Motor Power	1.1 kW / 1.5 HP
Voltage / Frequency	220V / 50Hz
Engine Speed	2,850 rpm
Cylinder Bore × Stroke	42 mm × 35 mm
Maximum Air Output	190 L/min
Tank Capacity	24 L
Maximum Working Pressure	8 Bar
Noise Level	78 dB(A)
Net Weight	18.2 kg
Dimensions (L × W × H)	60 × 26 × 62 cm
Pump Type	Oil-Lubricated Single-Piston
Tank Construction	Powder-Coated Steel
Safety Features	Pressure Relief Valve, Thermal Overload Switch, Emergency Stop

Why This Compressor Performs

The 190 L/min output at 8 Bar handles standard automotive tasks—tire inflation, impact wrench operation, blow-off work, and spray applications—without the bulk or power consumption of larger units. The direct-drive mechanism eliminates belt slippage, guaranteeing consistent pressure delivery. Oil lubrication naturally cools the piston, permitting extended run times in workshops with limited downtime.

Realistic Application Scope:

• Tire shops and quick-service automotive facilities
• Agricultural equipment maintenance
• Light manufacturing and assembly operations
• Equipment rental fleets seeking compact, reliable inventory
• Mobile service technicians requiring portable air delivery

This is not a high-volume industrial compressor; it is a purpose-built solution for operators who need dependable compressed air where space and portability matter.

---

Ready to stock a compressor your customers will return to service? This 24-liter model is engineered for reliability, priced for margin, and built to handle the applications that keep shops running.
