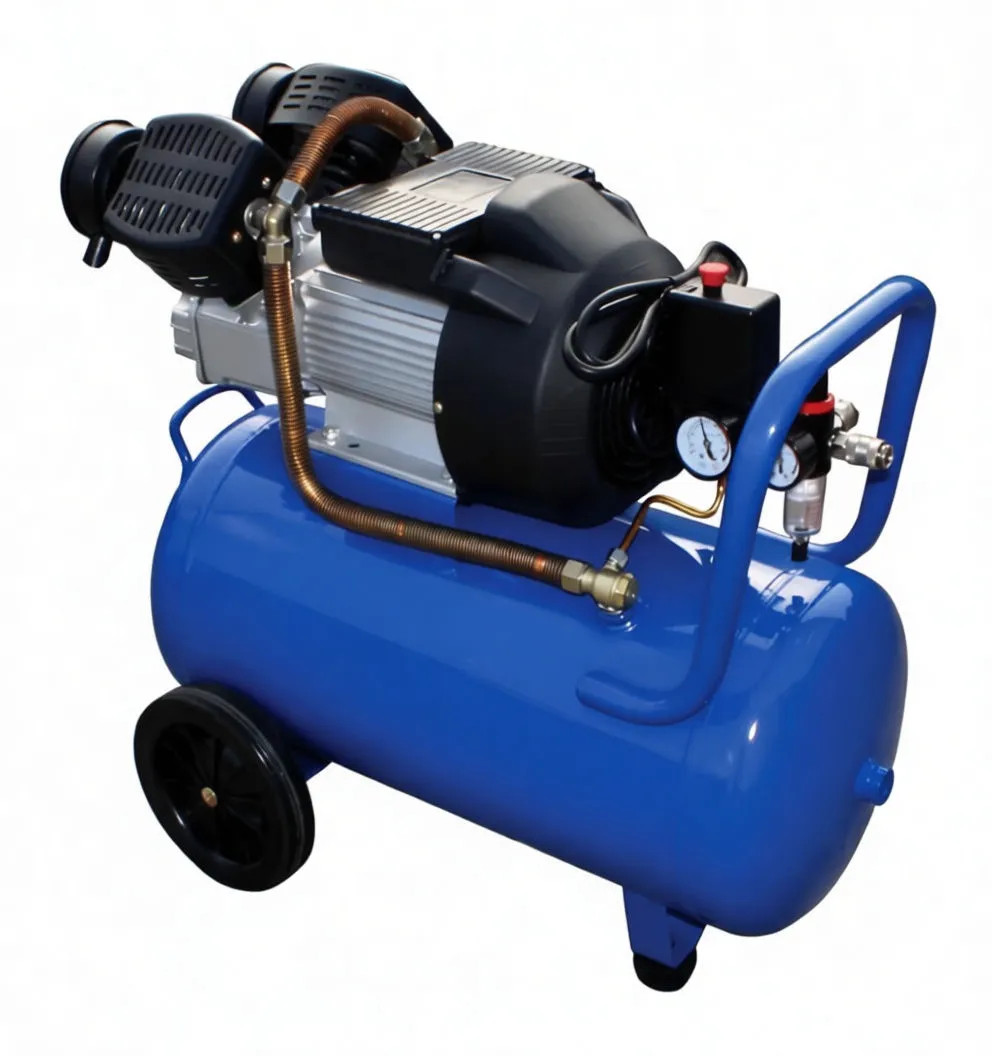

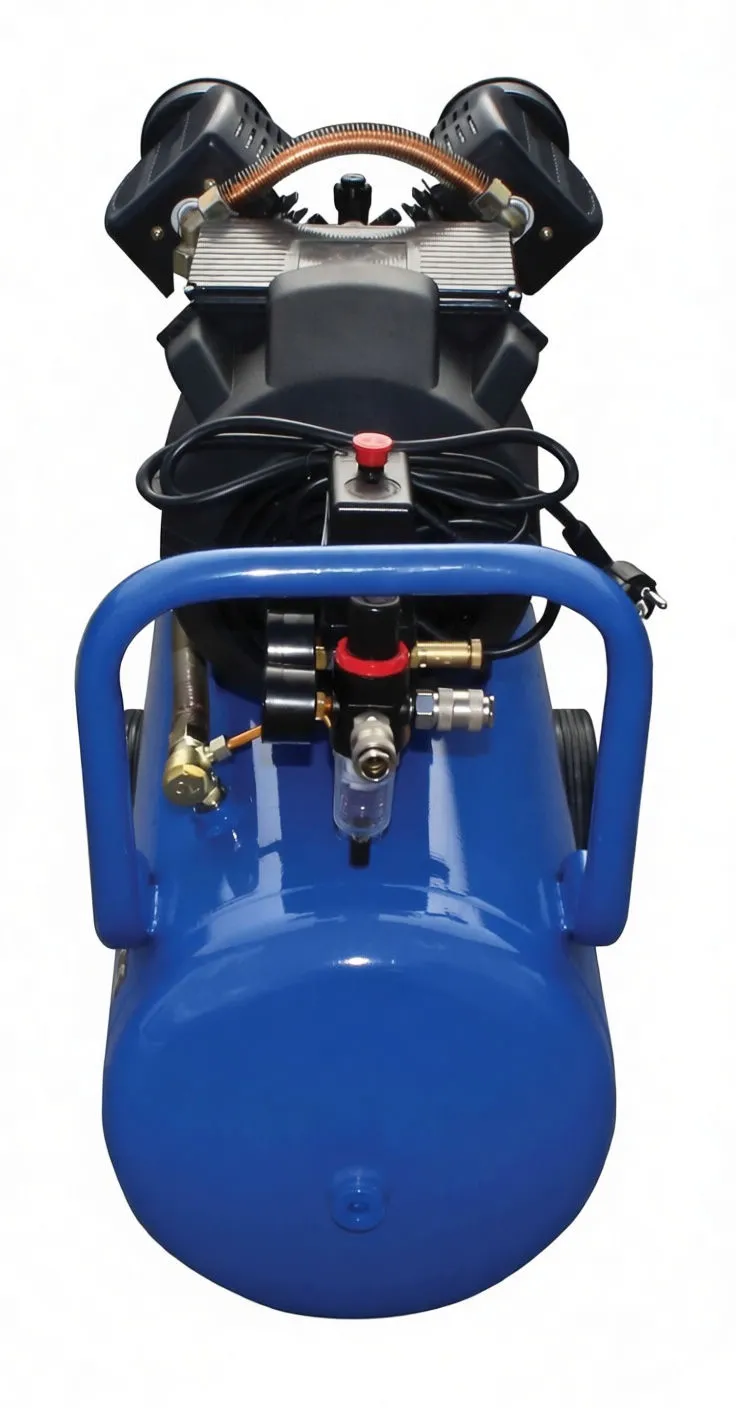

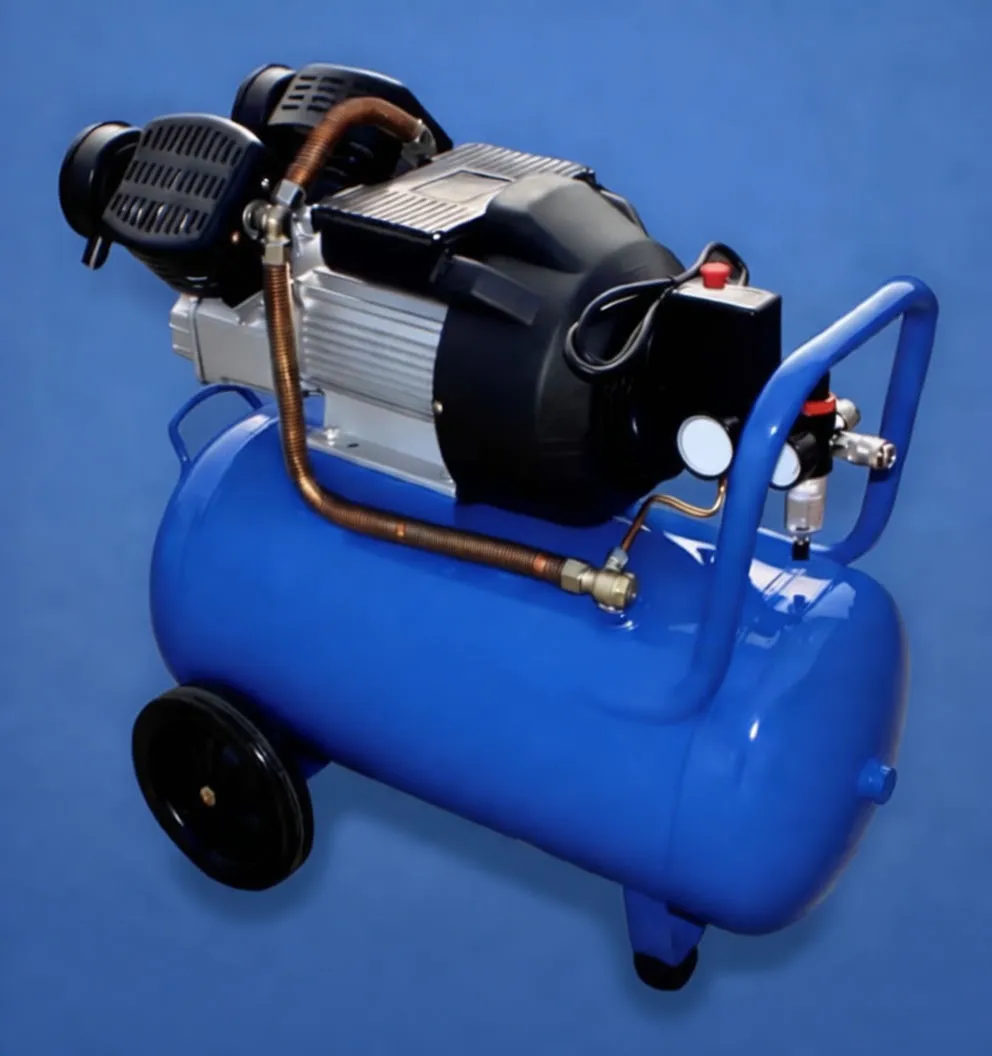

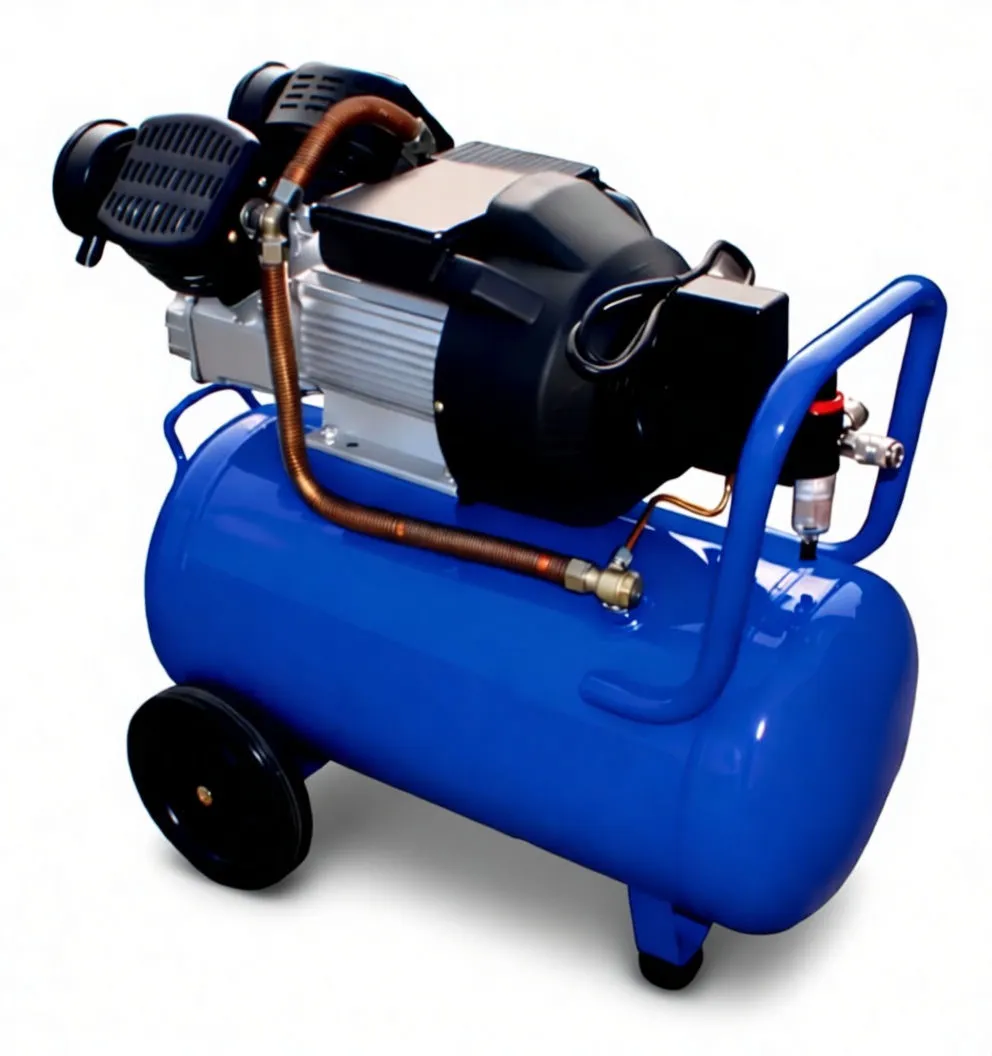

Direct-Driven Air Compressor, 50L Tank, 360 L/min, 10 Bar, 2.2kW Electric Motor

Brief Overview

This 50-liter direct-drive air compressor is engineered for workshops, garages, and small production facilities requiring consistent, reliable compressed air output. The V-configured twin-piston design delivers 360 L/min at 10 Bar maximum operating pressure—sufficient for most pneumatic tools and spray applications. If you need greater capacity for continuous industrial use, consider upgrading to a larger 100-liter oil-lubricated model or exploring oil-free alternatives depending on your application requirements.

Key Features

• V-Configuration Twin-Piston Engine: Low-speed, dual-piston design reduces vibration and extends component longevity.
• Aluminum Pistons & Cast Iron Cylinders: Optimized thermal dissipation prevents overheating; proven metallurgy extends service intervals.
• Direct Motor Drive: Eliminates belt-and-pulley inefficiencies; simpler maintenance and fewer wear points.
• 50L Steel Tank: Thick-gauge steel construction with anti-corrosion powder coating withstands workshop environments.
• Dual Pressure Management: Pressure regulator with visual gauge reduces pressure for downstream tools; safety relief valve prevents over-pressurization.
• Oil Level Sight Glass: Quick visual confirmation of lubrication status without draining the tank.
• Moisture Trap & Quick-Connect Fitting: Integrated moisture separator reduces condensation in the air line; standardized quick-connect simplifies tool attachment and removal.
• Thermal & Electrical Protection: Solid construction and motor safeguards ensure extended trouble-free operation.

Business Advantages for Resellers

• Strong Unit Economics: The 2.2kW motor-to-tank ratio delivers excellent air output per watt, keeping electricity costs competitive for your customers.
• Proven Durability: Cast iron cylinders and aluminum pistons are industrial-grade materials with established service life—minimal warranty claims.
• Easy Customer Training: Straightforward operation (pressure gauge, relief valve, moisture trap) requires no specialist technician to maintain.
• Wide Application Range: Suitable for tire inflation, spray painting, pneumatic impact tools, and general workshop use—appeals to diverse customer segments.
• Compact Footprint: 75 × 38 × 65 cm with dual wheels for mobility fits tight workshop spaces without requiring fixed installation.

Technical Specifications

Feature	Specification
Motor Power	2.2 kW / 3 HP
Voltage / Frequency	220V / 50 Hz
Motor Speed	2850 rpm
Maximum Air Output	360 L/min
Tank Capacity	50 L
Maximum Operating Pressure	10 Bar
Noise Level	92 dB
Overall Dimensions	75 × 38 × 65 cm
Weight	40 kg
Piston Configuration	V-shaped, oil-lubricated, twin-cylinder
Tank Material	Steel with anti-corrosion powder coating

Why This Model Wins in the Market

The direct-drive mechanism eliminates belt replacement and alignment issues—a significant maintenance advantage over belt-drive competitors. The aluminum-piston/cast-iron-cylinder pairing balances lightweight construction with thermal stability, keeping the unit cool during continuous operation. At 92 dB, it's acceptable for enclosed workshop environments without hearing protection requirements.

For resellers stocking mid-range compressors, this 50L direct-drive unit fills the gap between portable 6–24L models (suited for occasional or mobile use) and the heavier 100L+ industrial units (for dedicated fixed installations). Its 360 L/min output matches the real-world demand of shops running 2–4 concurrent pneumatic tools.

Call to Value

Order in bulk and establish this reliable workhorse as a standard offering in your catalog. The straightforward design, proven component reliability, and universal 10 Bar rating make it an easy recommendation for customers upgrading from small portables or replacing aging equipment. Stock multiple units to meet seasonal demand surges during spring/summer workshop build-outs.
